InsureBook Developer Guide

---

Acknowledgements

Our project is based on AddressBook Level-3

External libraries used: JavaFX for our UI, Jackson for data management and storage, JUnit5 for testing.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

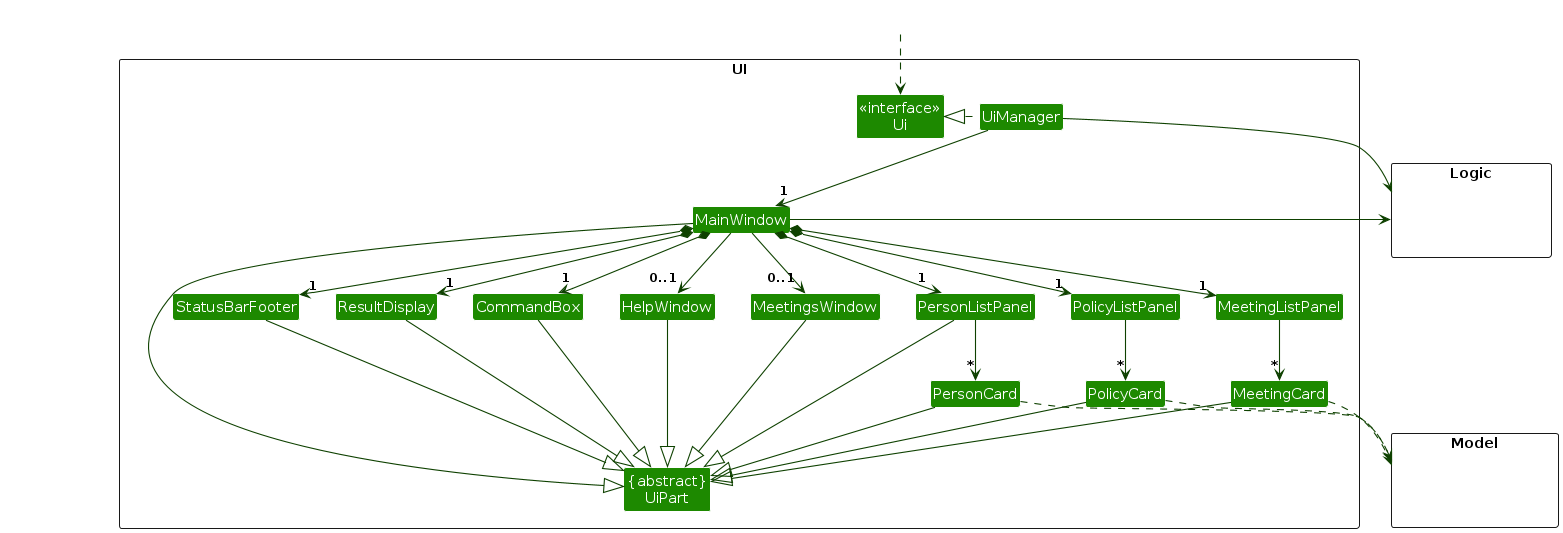

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

Here's a (partial) class diagram of the Logic component:

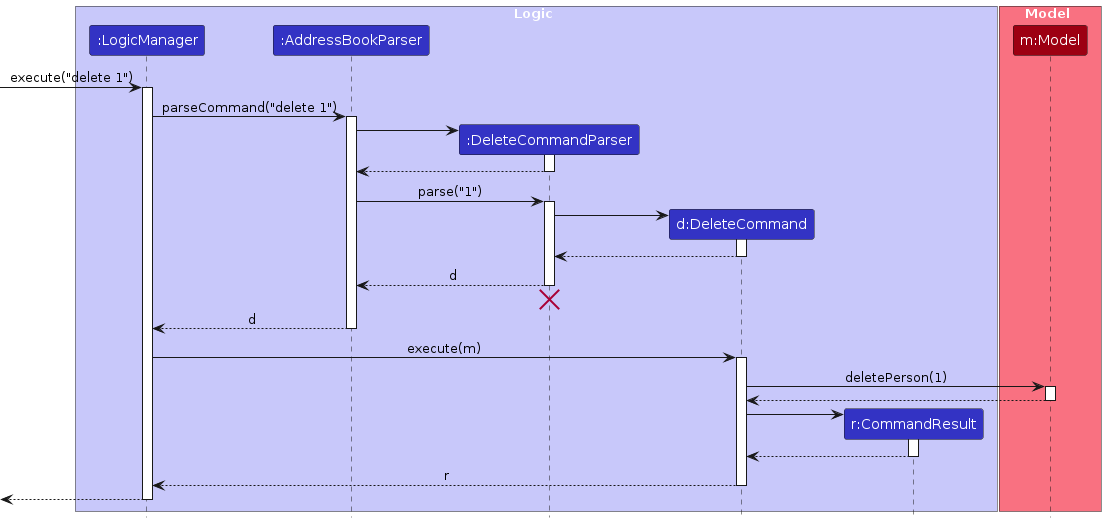

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

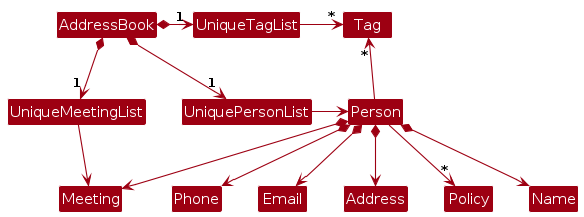

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Policy feature

As an insurance agent, each of your clients can have 0 or multiple policies under them as their insurance policies can cover a variety of things such as health, life, car, house, etc. Hence, it is essential that our application keeps track of these policies and their details under the correct client.

Implementation

Essential policy information consists of 6 fields:

1. Policy name
2. Policy type
3. Policy number
4. Premium Term
5. Premium
6. Benefit

Thus, we created a new Policy class that has these fields as required attributes that have to be passed in as arguments into the constructor. In our Person class (which represents a client in our InsureBook), we have a new attribute called policies which represents a set of Policy objects tagged to the Person object.

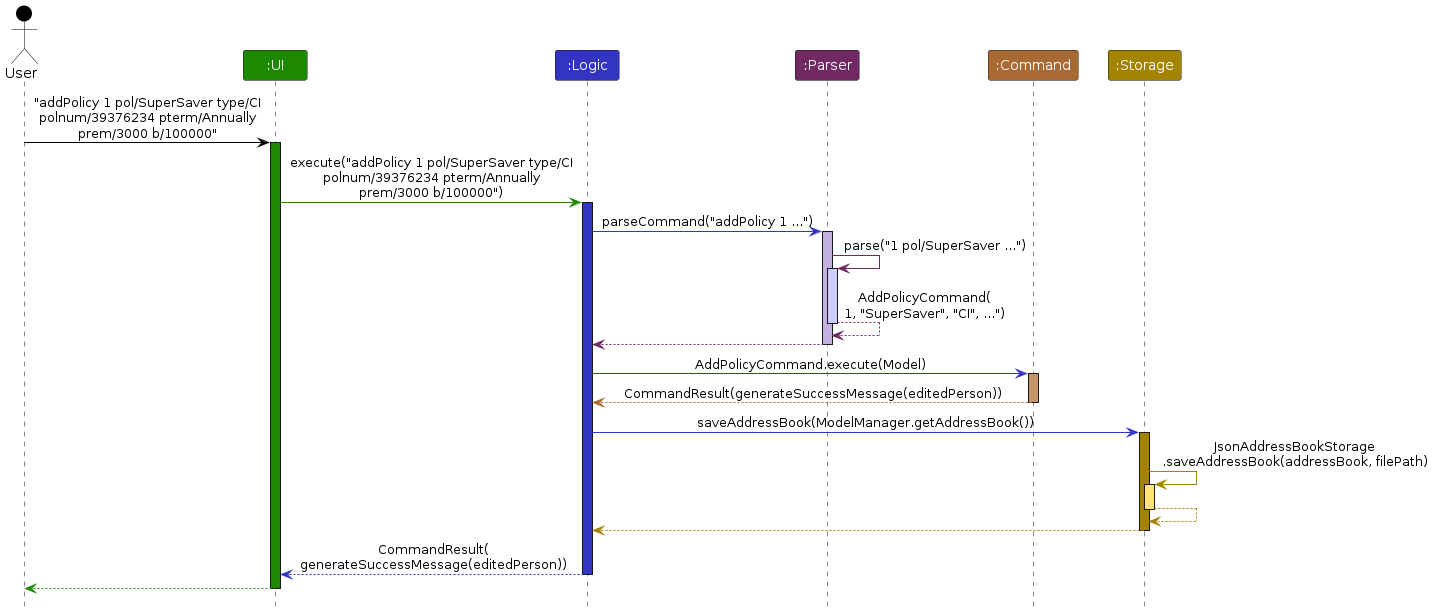

Given below is an example usage scenario and how the add policy mechanism behaves at each step

Step 1. The user launches the application for the first time and adds a new client to the InsureBook with the add command add n/David .... In this step, a new Person object is created with the attributes name = David phone = 96623786 and so on. policies attribute is initialised to an empty set, representing that a client starts out with no policies attached to the client

Step 2. This client David decides to take up a new insurance policy with the user. The user then adds a new policy to David and uses the addPolicy command with David's person index (e.g. 2) addPolicy 2 pol/policyA type/health polnum/987654 pterm/annually prem/123 b/456.

Step 3. Upon entering this command, the LogicManager uses the AddressBookParser to parse the input string and recognise the addPolicy command word to pass the arguments into the AddPolicyCommandParser where the arguments are parsed to extract the parameters to create a new AddPolicyCommand object while also checking that the arguments are valid.

Step 4. A new AddPolicyCommand object is created and returned to LogicManager with an execute command that finds the Person object (David) with the given person index (2) and retrieves the current set of Policy objects stored in this Person's policies attribute.

Step 5. With the given arguments, a new Policy object is created with the Policy constructor. This new Policy object is appended to the Person's previous set of Policy objects.

Step 6. Then a new Person object is created with this new set of Policy objects while keeping the other attributes of the Person object the same.

Step 7. The new Person object is then passed into Model#setPerson() which edits/updates the Person object (David) accordingly.

Step 8. Application throws a success message in the command output box to show that a new Policy object was added to the specified client's set of policies. Upon inspecting the specified client's person card, the user will see a new red tag with the inputted policy name.

Design considerations:

Aspect: How store multiple policy information in the same client:

• Alternative 1 (current choice): Encompass the policy details into a single Policy class with the details as attributes to the Policy class

  • Pros: Good abstraction level to organise all the policy information into one convenient class that can be referenced and have its own methods.
  • Cons: Not as straightforward to implement and requires updating multiple classes

• Alternative 2: Individual policy details as their own attributes to Person object itself.

  • Pros: Easy to implement
  • Cons: Weak level of abstraction and code becomes a lot messier and unclear

Add Client feature

Implementation

The add feature allows users to add new clients with the compulsory field Name, Phone, Email, Address, Meeting. The feature is implemented through the class AddCommand.

A meeting field needs to be in YYYY-MM-DD hh:mm format.

Design considerations:

Aspect: Meeting field

• We made sure that meeting field when doing edit or add is always later than current time so that there is no accidental logging of wrong meeting time.

Aspect: How to store clients

• Alternative 1: Store clients as a separate list from person.
  • Pros: Easier to implement new features on it.
  • Cons: Harder to implement it.
• Alternative 2 (current choice): Store clients as person in the same list.
  • Pros: Easier to implement.

Delete Client feature

Implementation

The delete feature allows users to delete clients with the compulsory field index. Users will be able to delete the client with the specified index, and the corresponding meeting of this person will be deleted in the Meetings section of the UI.

The feature is implemented through the class DeleteCommand.

The index field needs to be in an integer.

Design considerations:

• User can delete a client at the specified index.

• User should not have to remember the client's original index in the list view, thus:

  • index should be a value present in the current Client view section of the UI.

  • For example, a Client "John Doe" may have index 3 in the list view. However, after using the command find John Doe, this Client may have index 1 now.

  • Use the index of the client in the displayed client list view (e.g. delete 3 in list view but delete 1 after using find or view command).

• Both MeetingCard section and PersonCard section will be affected

Delete Policy feature

Implementation

The delete policy mechanism is facilitated by DeletePolicyCommand. It extends Command which is an abstract class with only 1 method, Command#execute(Model model). Additionally, it implements DeletePolicyCommand#generateSuccessMessage(Person editedPerson).

Further descriptions on the methods:

• DeletePolicyCommand#execute(Model model) — Executes the delete policy command and removes the policy with the input policy number that is linked to the input client.
• DeletePolicyCommand#generateSuccessMessage(Person editedPerson) — Generates and prints the success message when a policy is successfully deleted from the specified client.

Design Considerations:

Aspect: Index and Policy Number field

• We made sure that either Index field or Policy Number field cannot be empty, if not, an exception will be raised to alert the user that some fields are insufficient/invalid.

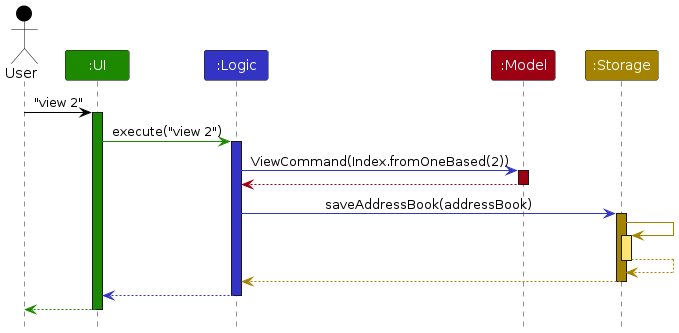

View Client feature

Implementation

The view feature allows users to view clients with the compulsory field index. Users will be able to see all information about the specified client, including the policies held by the client and these policies' details.

The feature is implemented through the class ViewCommand.

The index field needs to be in an integer.

Design considerations:

• User can view a client at the specified index.
• User can see a list-view of policies that this client is covered by.
• MeetingCard section of UI should not be affected by this command.

View Meetings For This Week feature

Implementation

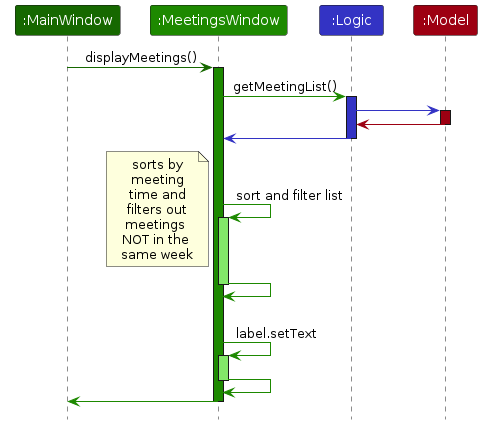

The 'meetings' command allows users to view all the meetings that are scheduled in the current week. The feature is implemented through the MeetingsCommand class.

The UI component for this command is the MeetingsWindow, which is a pop-up window displaying the meetings for the current week.

Design considerations:

• User can view all meetings scheduled for the current week, in chronological order. This allows the user to efficiently identify the meetings that are coming up soon.
• The meetings should be displayed along with the client's name, so that users can identify the client they are meeting and the time of the meeting.
• Designed as a pop-up window to allow users to view the meetings without cluttering the main window. Users can also check details in the main window while viewing the meetings.
• User must be able to close the window using a keyboard, to maintain the keyboard-centric design and speed advantage of the CLI app.

Planned enhancements

These are some proposed features that can be implemented in the future.

Adding a policy displays it in the Policies panel

• A possible implementation: Modify CommandResult to have an isAddPolicy() method. In the MainWindow class, modify executeCommand - if the command result isAddPolicy, display the newly added policy in the PolicyListPanel.
• This feature would allow users to easily check the details of the newly added policy, without having to look through the user feedback box.

Delete policies using the policy's index in Policies panel

• This feature would allow users to easily delete policies, without having to type out the whole policy number.

Improving allowed inputs

• Change the allowed inputs for certain fields so that they make logical sense.
  • Improve allowed inputs for phone number (ensure it is 8 digits long and starts with 6, 8 or 9)
  • Improve allowed input for phone number and email fields (ensure that these fields are unique across clients)

Fixing text that gets cut off in UI

• Right now, long input fields may cause text to be cut off in the UI, e.g. a long client name might get cut off in the UI with ...
• This can be fixed by either:
  • limiting the number of characters allowed in the name. This is not ideal as certain clients may in fact have very long names, and we should allow these names too.
  • fixing UI such that text out of boundaries are wrapped. This is the better solution.

Improve validity checks for inputs

• Ensure that error messages that are shown are consistent throughout all commands.
  • Ensure that all types of invalid index inputs raise the same error.

Improve UI layout

• Tweak the UI such that all client details are displayed in the UI with the view command, regardless of the window size of the application.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix A: Requirements

Product scope

Target user profile: An insurance agent who

• has a need to manage a significant number of clients and keep track of each client's policies
• has a need for an all-in-one application to schedule his appointments and remind him of upcoming meetings
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: InsureBook is an all-in-one application designed to allow Insurance Agents to keep track of their client's personal information and policies. Our application also allows Insurance Agents to schedule meetings with clients. With our application, Insurance Agents can centralise their workflows and achieve increased work efficiency.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is InsureBook and the Actor is the user, unless specified otherwise)

Use case: UC01 - View help

MSS

1. User requests to see the help.

2. InsureBook opens up the help window, displaying the command summary.

   Use case ends.

Use case: UC02 - Add a client

MSS

1. User requests to add a new client.

2. InsureBook adds the new client to the list.

   Use case ends.

Extensions

• 1a. The provided field(s) is/are invalid.

  • 1a1. InsureBook shows an error message.

    Use case resumes from step 1.

• 1b. Compulsory field(s) is/are missing.

  • 1b1. InsureBook shows an error message.

    Use case resumes from step 1.

Use case: UC03 - List all clients

MSS

1. User requests to show all clients in the list.

2. InsureBook shows all clients in the list.

   Use case ends.

Use case: UC04 - Edit a client

MSS

1. User requests to list all clients(UC03).

2. InsureBook displays the list of clients.

3. User requests to edit the fields of a specific client in the list.

4. InsureBook edits the fields of the client.

   Use case ends.

Extensions

• 1a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. InsureBook shows an error message.

    Use case resumes at step 3.

• 3b. The new field value(s) is/are invalid.

  • 3b1. InsureBook shows an error message.

    Use case resumes at step 3.

• 3c. No fields to edit are provided.

  • 3c1. InsureBook shows an error message.

    Use case resumes at step 3.

Use case: UC05 - View a client

MSS

1. User requests to list all clients (UC03).

2. User requests to view a specific client in the list.

3. InsureBook shows the client's details and each of their policy's full details.

   Use case ends.

Extensions

• 1a. The list of client is empty.

  Use case ends.

• 2a. The given index is invalid.

  • 2a1. InsureBook shows an error message.

    Use case resumes at step 2.

Use case: UC06 - Find a client

MSS

1. User requests to find all clients with names matching the input keyword(s).

2. InsureBook shows all clients with matching names.

   Use case ends.

Extensions

• 1a. No keywords are provided.

  • 1a1. InsureBook shows an error message.

    Use case resumes from step 1.

Use case: UC07 - Add a policy

MSS

1. User requests to list all clients (UC03).

2. User uses the addPolicy command to add a specific policy to a client with a specified index with parameters Policy name, Policy type, Policy number, Premium Term, Premium, Benefit

3. InsureBook successfully adds the said policy to the person at the specified index

   Use case ends.

Extensions

• 1a. The list of client is empty.

  Use case ends.

• 2a. The given index is invalid.

• 2a1. InsureBook shows an error message.

  Use case resumes from step 2.

Use case: UC08 - Delete a policy

MSS

1. User requests to list all clients (UC03).

2. User requests to delete a specific policy (identified by unique policy number) from a Client at a specified index

3. InsureBook successfully removes the policy from the Client at the specified index.

   Use case ends.

Extensions

• 1a. The list of client is empty.

  Use case ends.

• 2a. The given index is invalid.

• 2a1. InsureBook shows an error message.

  Use case resumes from step 2.

• 3a. The given policy number is invalid or does not exist

• 3a1. InsureBook shows an error message.

  Use case resumes from step 2.

Use case: UC09 - Find a policy

MSS

1. User requests to list all clients (UC03).

2. User requests to Find all users with a specific policy, using a chosen keyword.

3. InsureBook successfully lists all users with the Policy containing the keyword in its name in the Clients section of UI

   Use case ends.

Extensions

• 1a. The list of client is empty.

  Use case ends.

• 2a. The given keyword is invalid.

• 2a1. InsureBook shows an error message.

  Use case resumes from step 2.

Use case: UC10 - Delete a client

MSS

1. User requests to list all clients (UC03).

2. User requests to delete a specific client in the list.

3. InsureBook deletes the clients.

   Use case ends.

Extensions

• 1a. The list of client is empty.

  Use case ends.

• 2a. The given index is invalid.

  • 2a1. InsureBook shows an error message.

    Use case resumes at step 2.

Use case: UC11 - View upcoming meetings for the present week

MSS

1. User uses the meetings command to view upcoming meetings.
2. InsureBook creates the popup showing all the upcoming meetings for the coming week, sorted in chronological order.

Extensions

• 1a. There is no upcoming meetings for the week.

  Use case ends.

Use case: UC12 - Clear all entries

MSS

1. User requests to clear all entries.

2. InsureBook asks for confirmation to clear all entries.

3. User confirms to clear all entries.

4. InsureBook clears all entries.

   Use case ends.

Extensions

• 2a. Confirmation is not given.

  • 2a1. InsureBook cancels the clear action.

    Use case ends.

Use case UC13: Exit program

MSS

1. User requests to exit the program.

2. InsureBook exits.

   Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Should work without internet connection.
5. For any command, the system should respond within 2 seconds.
6. Should provide comprehensive documentation for users to learn how to use the command-line interface effectively.
7. Should provide clear and user-friendly error messages, guiding users on how to rectify issues.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Private contact detail: A contact detail that is not meant to be shared with others
• CLI: Command Line Interface
• GUI: Graphical User Interface

---

Appendix B: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the JAR file and copy into an empty folder. See the Quick Start section in the User Guide for the link to download the JAR file.

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Exiting the Application (Shutdown)

   1. Type in "Exit" in the main command bar of the InsureBook.
   2. Else, manually close the Application

Deleting a client

1. Deleting a client while all clients are being shown

   1. Prerequisites: List all clients using the list command. Multiple clients in the list.

   2. Test case: delete 1
      Expected: First client's contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0


      Expected: No client is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. Deleting a client from an empty InsureBook

   1. Prerequisites: List all clients using the list command. The list should be empty.

   2. Test case: delete x

      Expected: An Error should pop up and Error details will be shown in the status message. Shows that the storage is functioning properly.

Saving data

1. Dealing with missing/corrupted data files

   1. Stimulating a corrupted/missing data file

      1. Close the application if it's running.
      2. Navigate to the file containing the data of the InsureBook which is located in /data/addressbook.json
      3. Delete or rename this json file and this will corrupt it
      4. Exit and relaunch the application

      Expected: The application should detect that the data file is missing and the whole InsureBook would be empty, and the commands will still be working in the empty InsureBook without any crashes. This ensures that the application can still be used even if the data file gets deleted.
